;jsessionid=855E6ABED6C9B8C8B9644284316B3B041. Ultra-low Inset loss ≤0.25dB 2. G.652D, 10mm Min. Bend Radius 3. Durable for Indoor Use (e.g. Data Centers, Enterprise Networks, etc) 4. High Temperature Stability 5. Compliant with ROSH 2.0 and MCDSee more

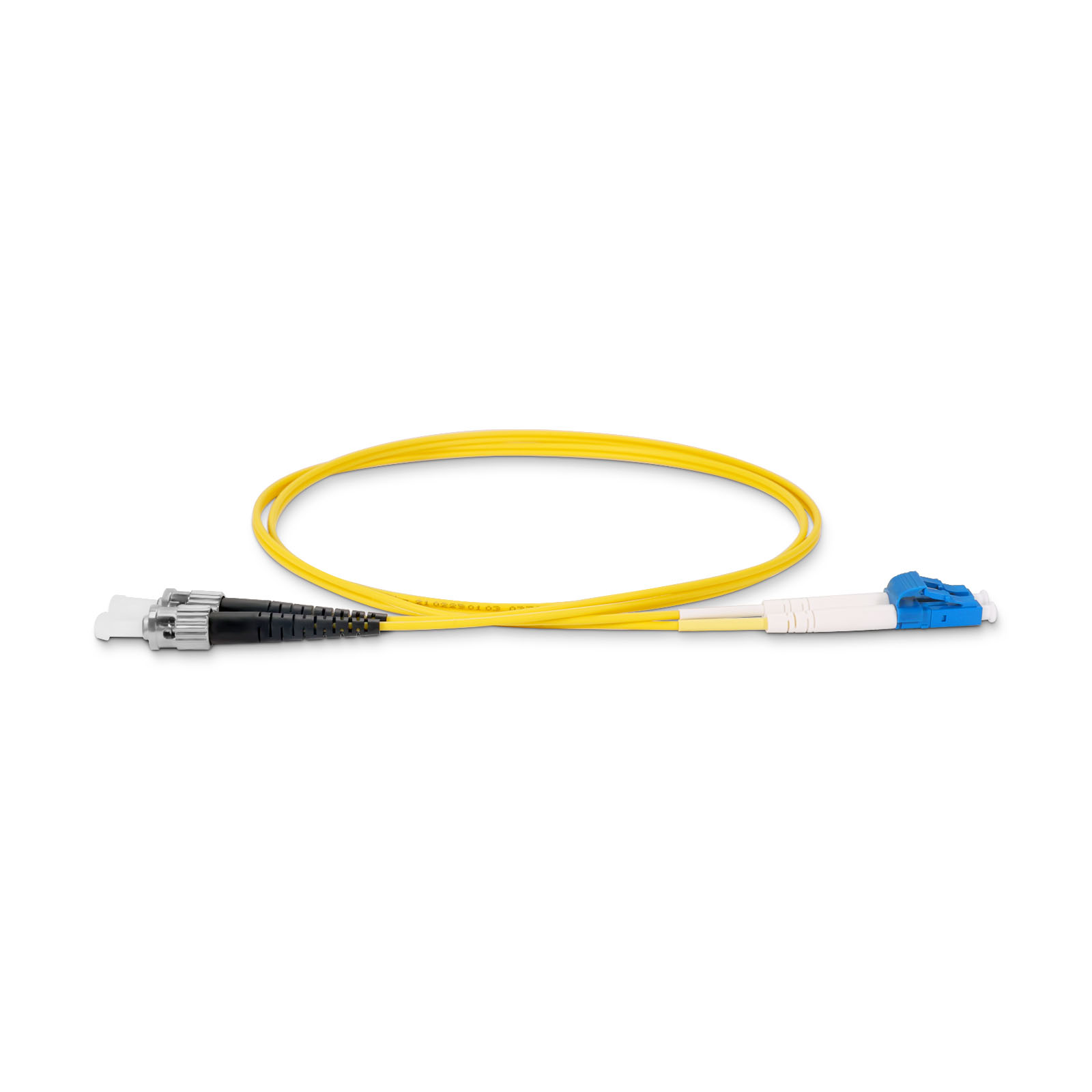

The 9/125μm OS2 SMF fiber optic patch cable, featured with ultra-low insert loss (0.36dB/km via 1310nm and 0.22dB/km via 1550nm), is specially optimized for 1G/10G/40G/100G/400G Ethernet connections. This single-mode fiber optic cable is widely applied in high-density application scenarios such as data centers, enterprise networks, telecommunication rooms, server rooms, etc., which helps to save rack space by a wide margin and maintain a neat cabling center.
Fiber Count |
2 Fibers |
Fiber Type |
OS2 SMF 9/125μm |
Connector Type |
LC UPC to ST UPC |
Wavelength |
1310nm/1550nm |
Armoured |
No |
Cable Material |
PVC |
Insert Loss |
0.25dB |
Return Loss |
≥50dB |
Approximate Diameter |
2.0mm |
Length |
0.5m/1m/1.5m/2m/3m/5m/7m/10m |
Min. Bend Radius (Fiber Cable) Dynamic |
10mm |
Min. Bend Radius (Fiber Cable) Static |
10mm |
Operating Temperature |
-20~+70°C |
Storage Temperature |
-40~+80°C |

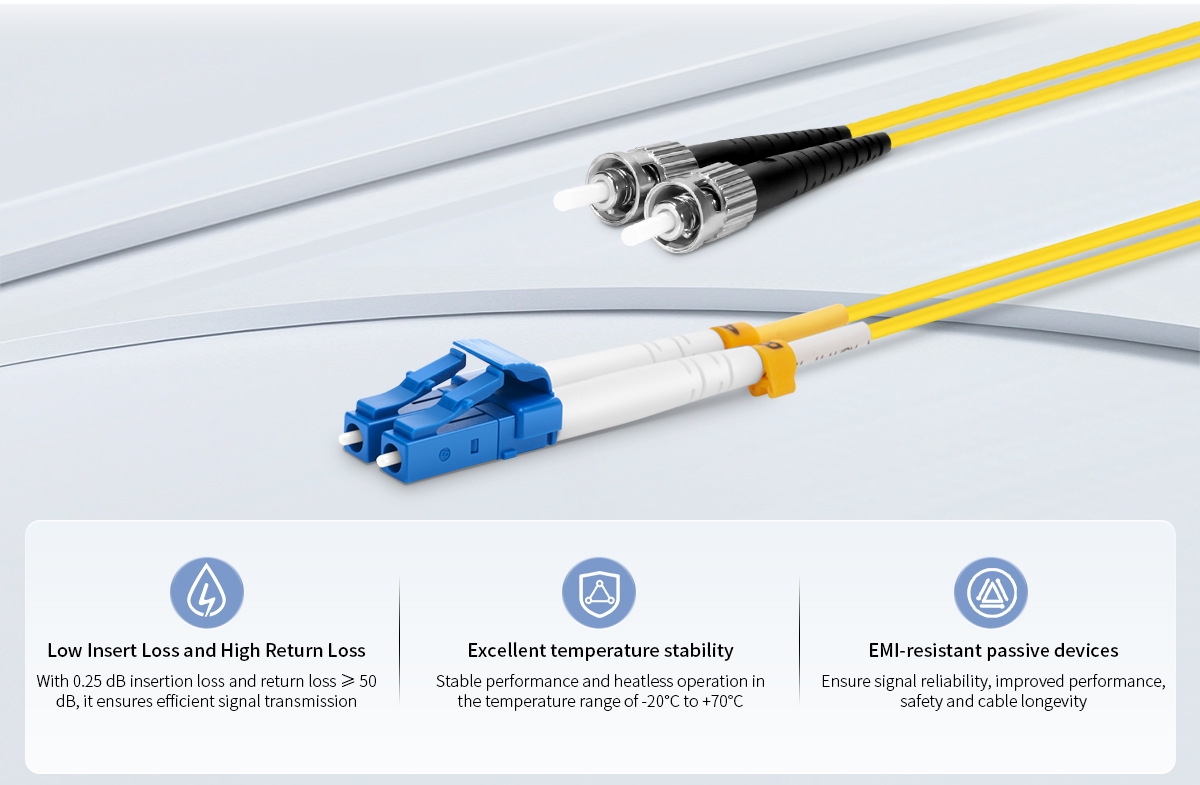

With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission
Perfect for network cabinet connectivity, ceiling wiring, and under-floor wiring within the data center environment.
