1. Applied in Single-channel Optical Line Protection 2. Supports optical line 1+1 protection (OLP), optical multiplexing section 1+1 protection (OMSP), and optical channel 1+1 Protection (OCHP) 3. Enables Real-time Monitoring for Smooth Operation 4. Quick Switch Time is Less Than 5ms 5. Offers Flexible Management Options Including CLI, Telnet, SNMPv2, and WebSee more

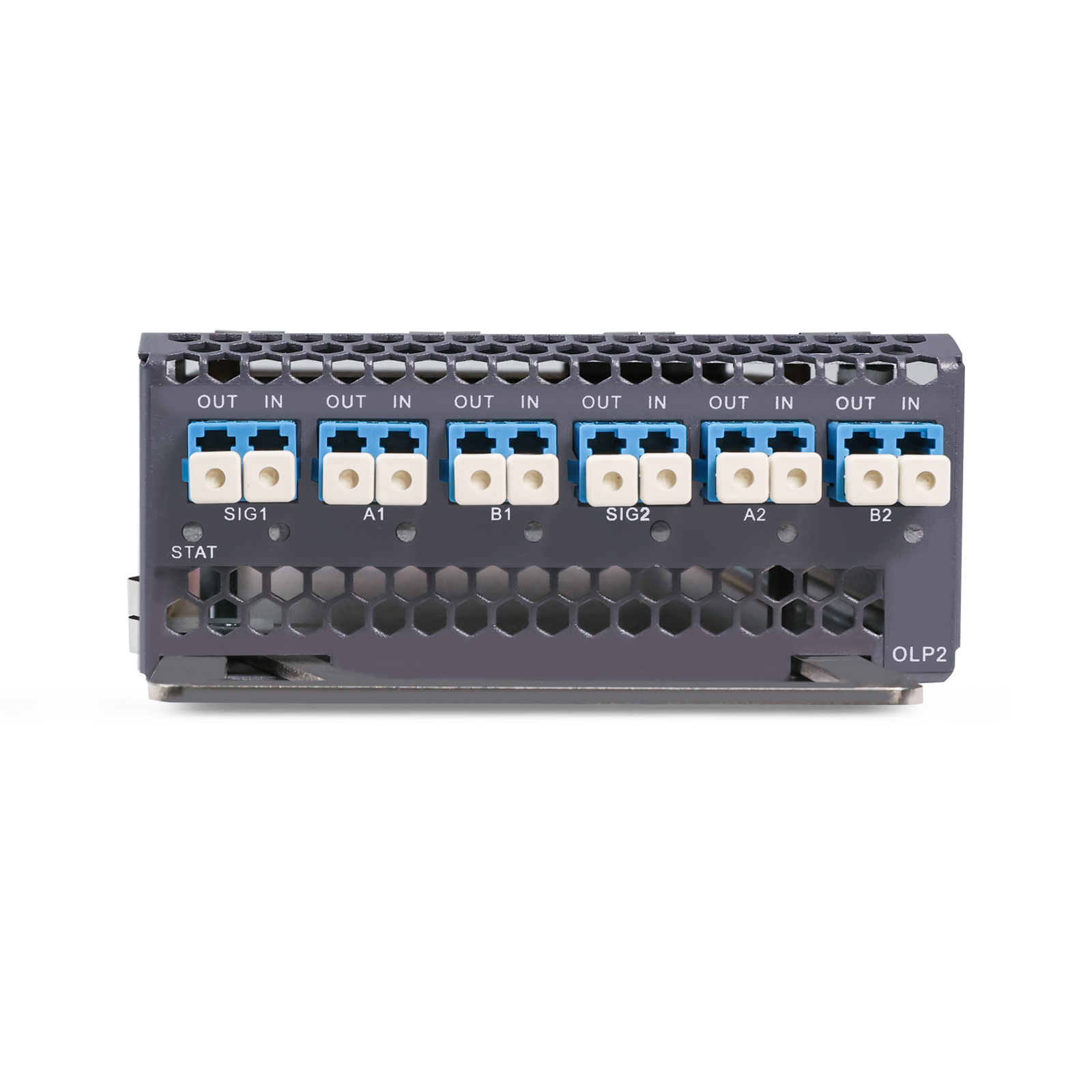

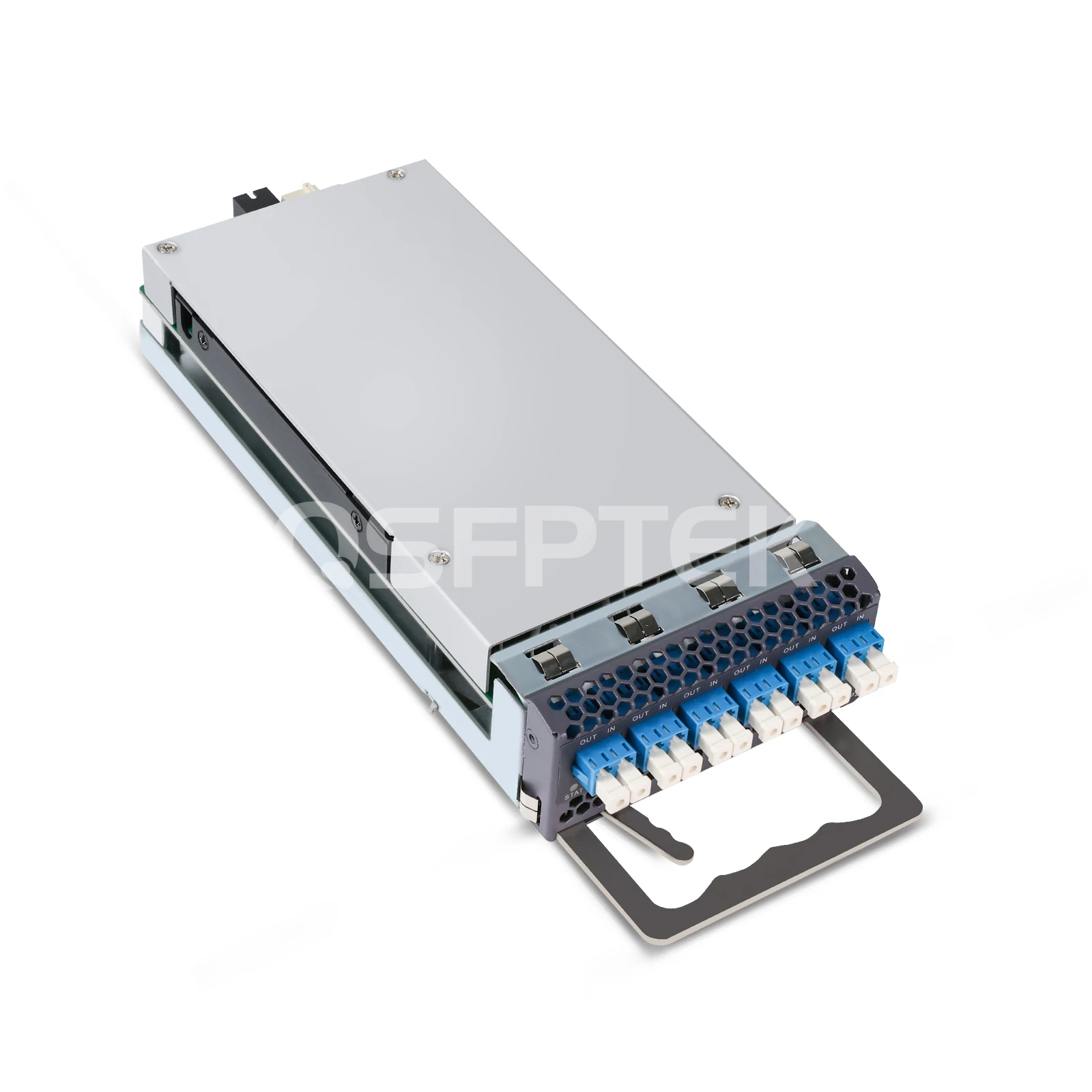

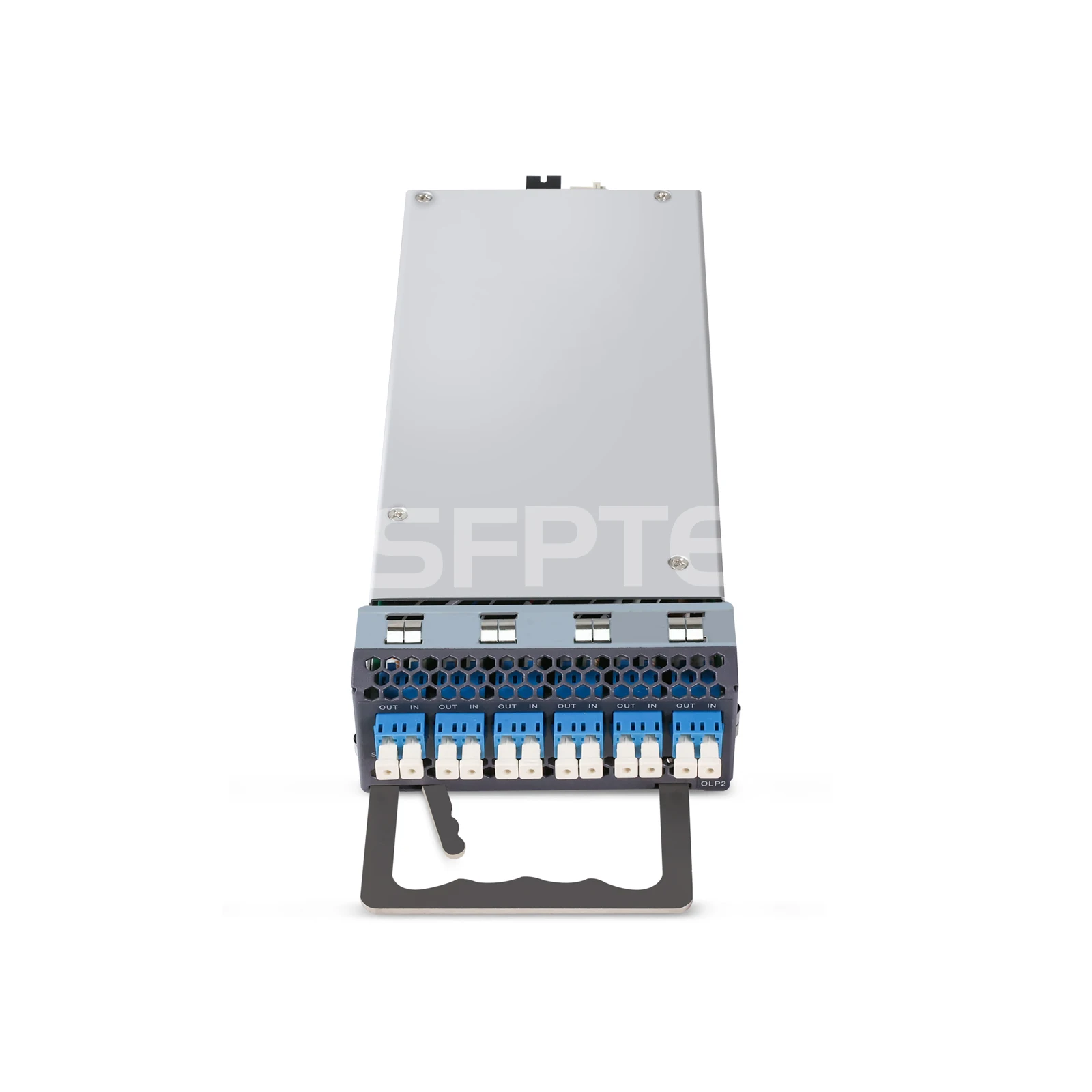

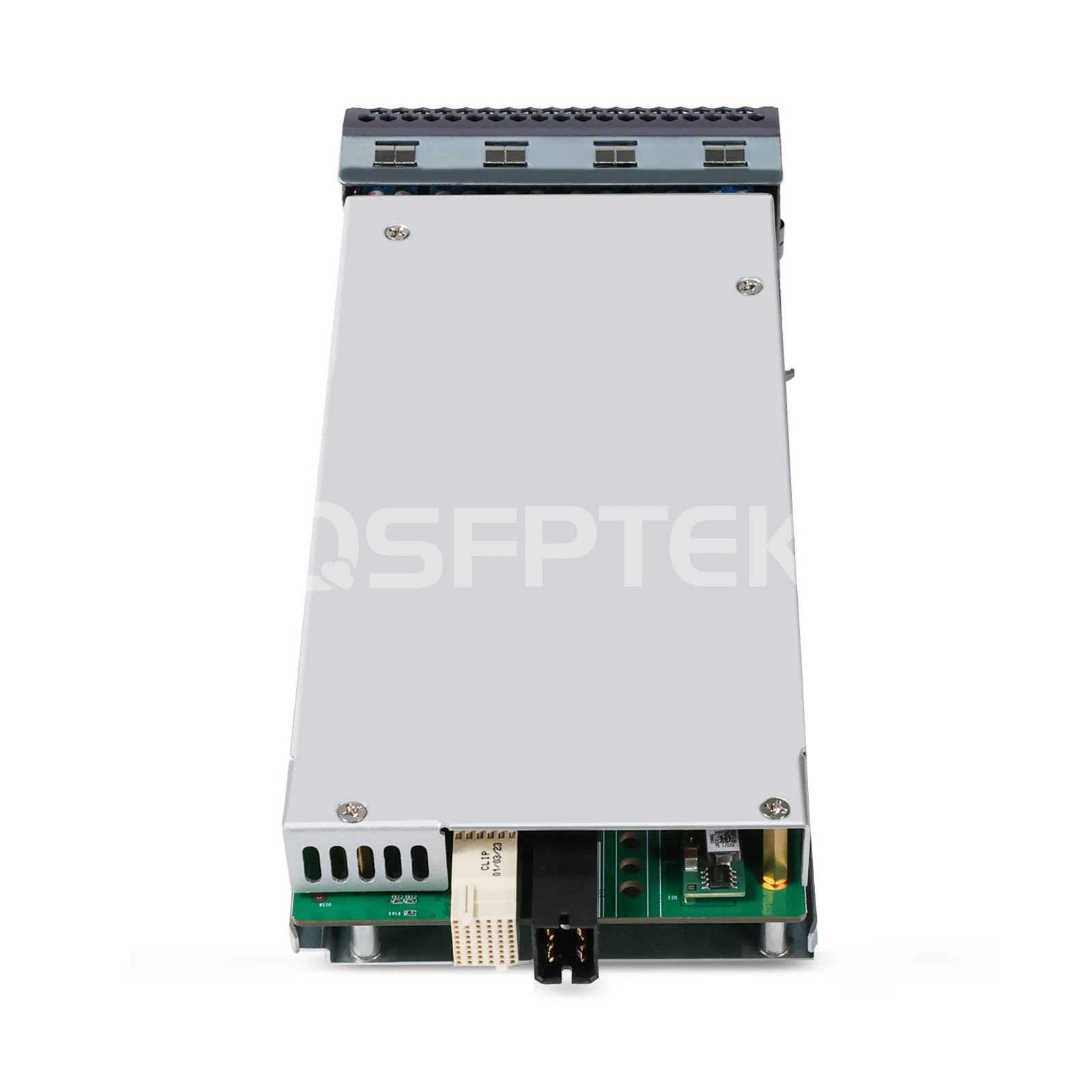

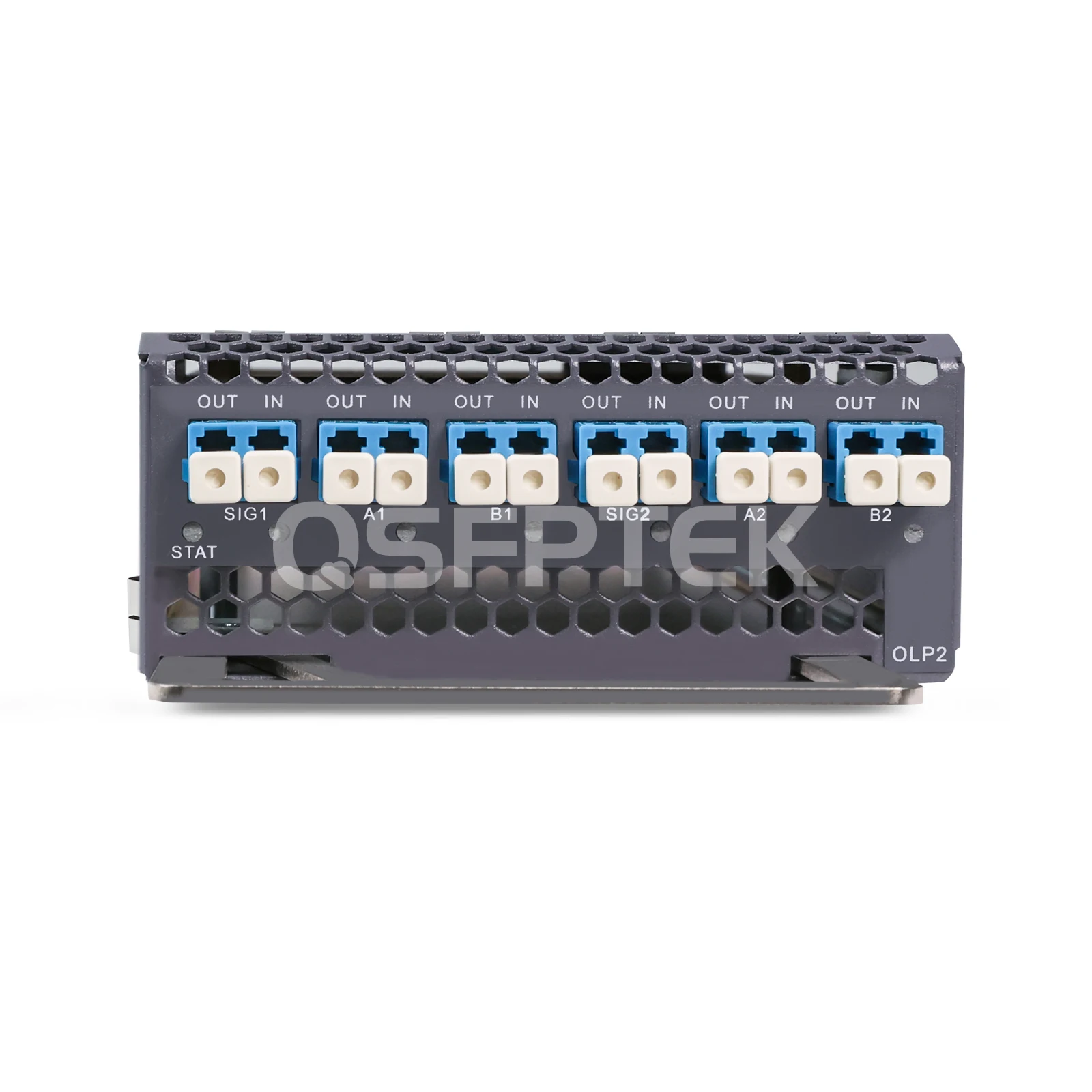

The OLP Optical Protection Board significantly focuses on protecting optical paths within Wavelength Division Multiplexing (WDM) systems. Serving as a critical mechanism for link protection, it ensures efficient and reliable equipment operation by continuously monitoring the signal status in real-time. Upon detecting a failure in the main optical path, the system swiftly switches to the backup path for flawless operation, significantly reducing the impact of signal interruptions. This optimization enhances network performance and provides users with a secure and dependable network solution.
Operating Wavelengths |
1528nm ~ 1568nm |
Insertion Loss |
Transmitter ≤4 dB, Receiver ≤1.5 dB |
Optical Power Detection Accuracy |
±0.5 dBm(@>-25 dBm) |
Polarization dependent loss |
<0.1dB |
Lsolation Degree |
>50dB |
Input Optical Power |
-25 dBm ~+21dBm |
Return Loss |
>45dB |
Slot Number |
1/4 Slot |
Switching Time |
<5 ms |
Temperature |
-40 to 80°C |
Connection 1:
Connection 2:
Related Products:
Generic Compatible 200G DWDM Tunable CFP2 DCO 1000km DOM Duplex LC SMF Transceiver Module
QT900-CH2U08, 8 Slots 2U Managed Chassis Platform Unloaded for OTN Transmission
S7600-48X8C, 48-Port Ethernet L3+ Switch, 48x 10G SFP+, 8x 100G QSFP28, Support MLAG, VXLAN
Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module
LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 1m
1m (3ft) MTP-12 (Female) to MTP-12 (Female) OM4 Elite Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)
Upon the loss of the primary line, allow swift activation of the backup line to ensure efficient and dependable transmission

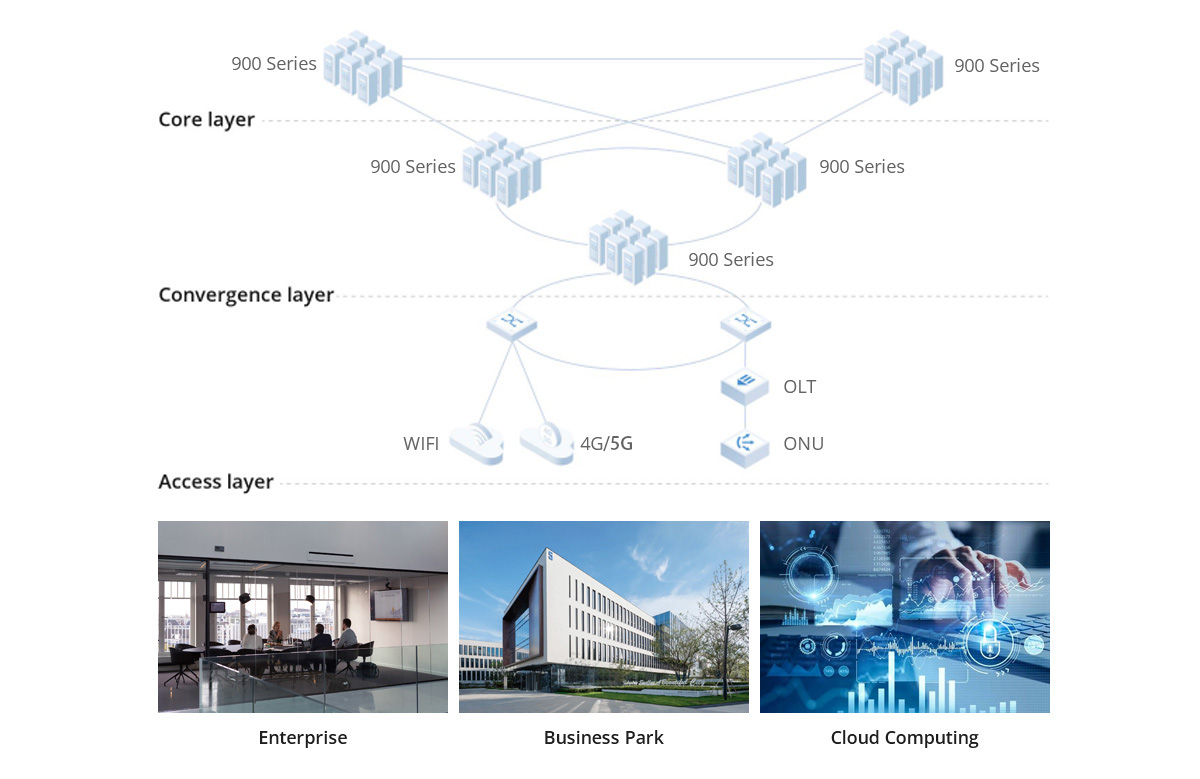

Designed to meet diverse network transmission requirements, wherein multiple optical layers cooperate to deliver high-performance network solutions

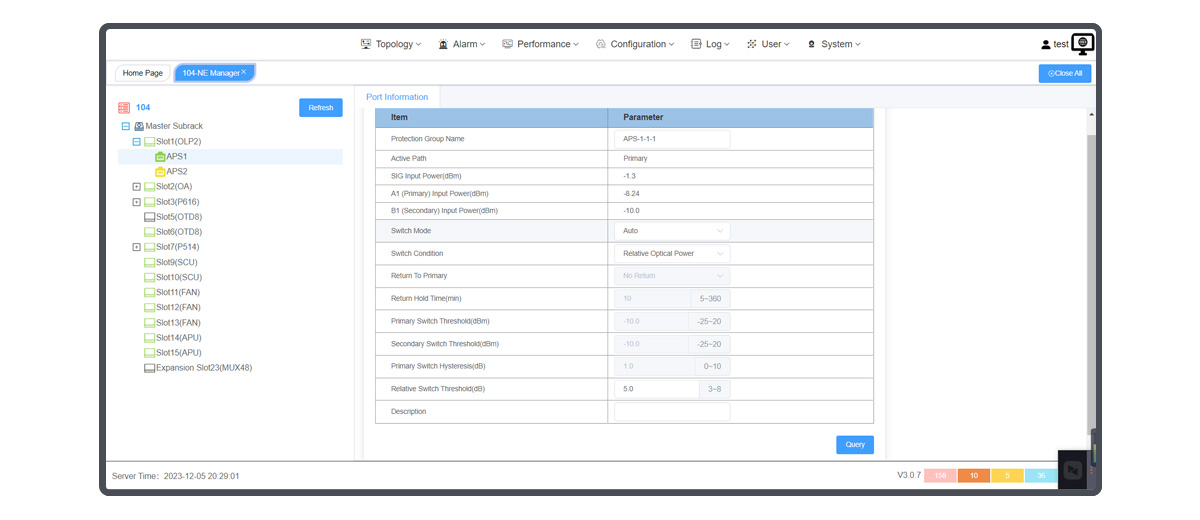

The OLP switch optimizes optical performance through real-time monitoring, promptly alerting you to any occurring errors or warnings.

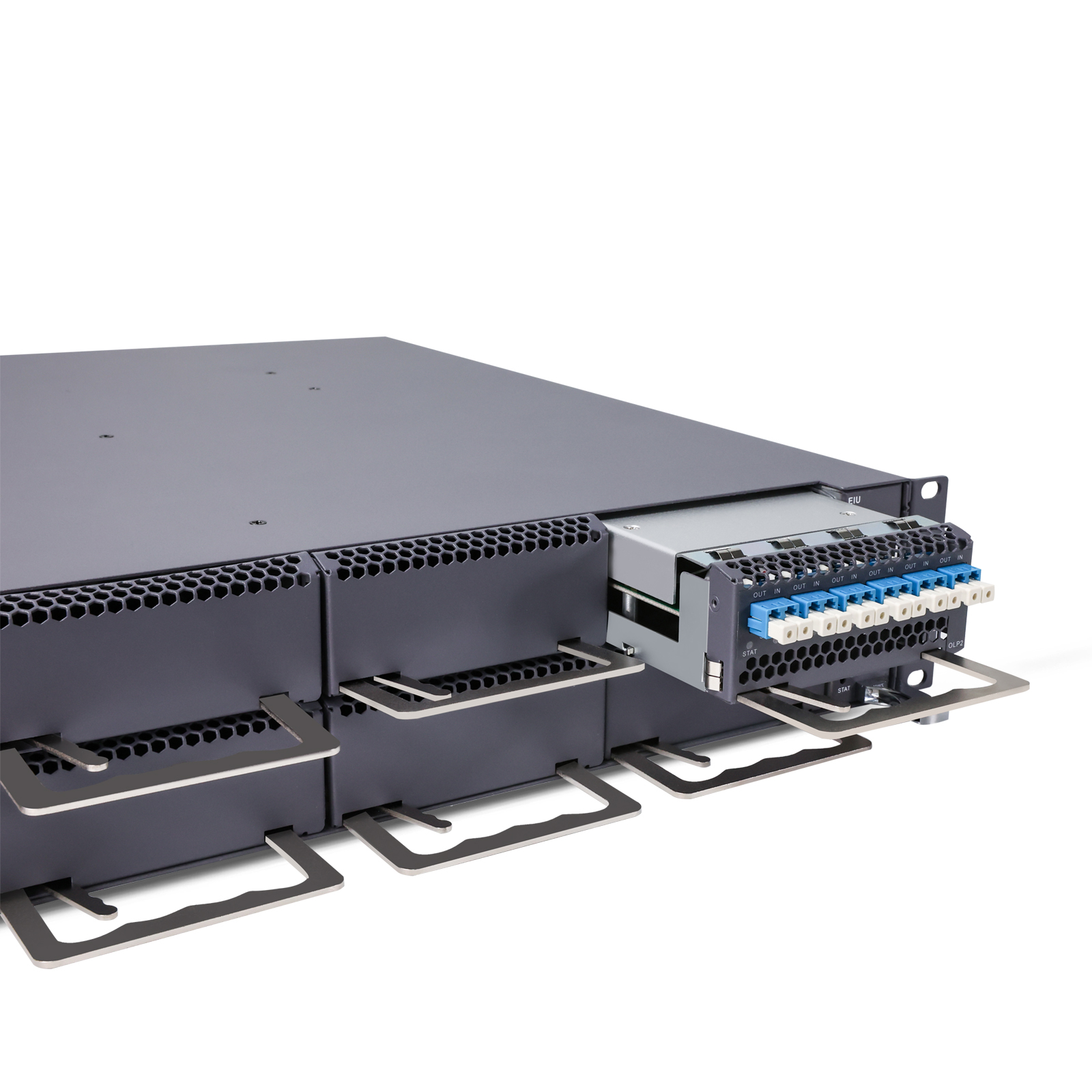

The 900 series contains various devices including Chassis, Electric layer boards, EDFA amplifiers, and more. These components seamlessly collaborate to meet various network requirements.
