;jsessionid=4900108E605286C195B638D8EFD7827D1. LSZH Jacket 2. Flexible 10mm Min. Bend Radius 3. Optimized for 40G/100G/200G/400G Transmission 4. MTP Connector with 24 Fibers 5. Compliant with ROSH 2.0 and MCDSee more

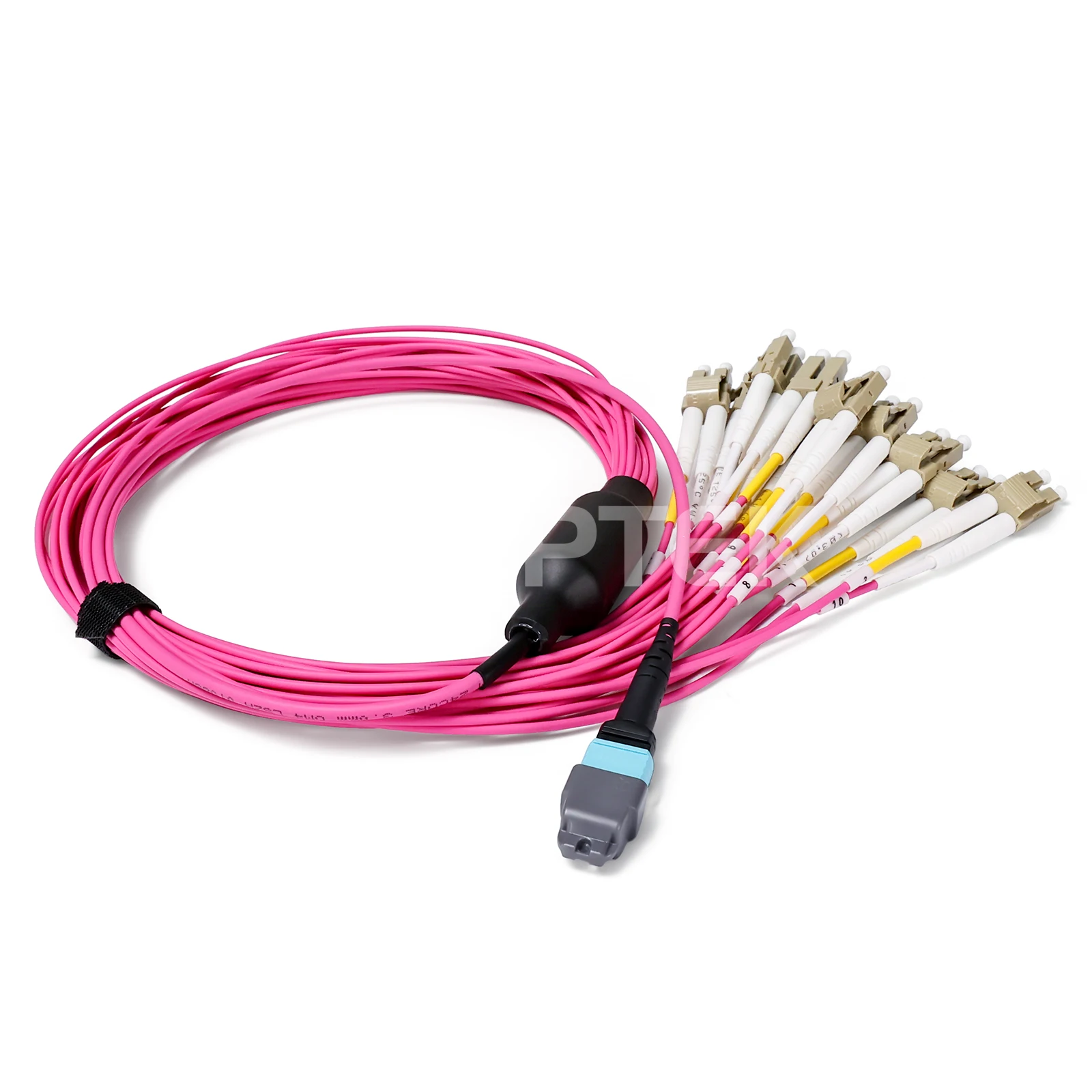

10m (33ft) MTP Female to 12 LC UPC Duplex 24 Fibers Type B Plenum (LSZH) OM4 50/125 Multimode Elite Breakout Cable
The MTP breakout cable provides a worry-free and cost-effective solution for high-density cabling to convert an MTP connector to an LC duplex connector. This MTP female to 12 LC UPC Duplex OM4 multimode breakout cable is used for connecting switches or MPO/MTP cassettes.
Connector A: |
MTP Female |
Connector B: |
LC UPC Duplex |
Fiber Count: |
24 Fibers |
Fiber Type: |
OM4 50/125μm |
Polish Type: |
UPC to UPC |
Wavelength: |
850nm/1300nm |
Armoured: |
No |
Cable Material: |
LSZH |
MTP Connector Insert Loss: |
0.35dB |
Return Loss: |
≥20dB |
Trunk Diameter: |
3.0mm |
Fan-Out Diameter: |
2.0mm |
Min. Bend Radius (Fiber Cable) Dynamic: |
10mm |
Min. Bend Radius (Fiber Cable) Static: |
10mm |
Operating Temperature: |
-20~+70 |
Storage Temperature: |
-40~+80 |
With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.
Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.
Ensure high reliability and performance connections by maintaining clean fiber end-faces.
